Semi Gantry Crane
Lifting Solutions
Precision Engineered,
Reliable Performance
As a leading semi gantry crane supplier in India, we specialize in designing and supplying heavy-duty systems tailored to your industrial needs. Our cranes are engineered to handle large loads with maximum stability and ease.
The semi-gantry configuration is unique: one end travels on a regular gantry rail while the other carriage travels on a floor-mounted track. This design effectively maximizes floor space and provides a cost-efficient solution for environments where full gantry systems may not be feasible.
What Is A Semi
Gantry Crane?

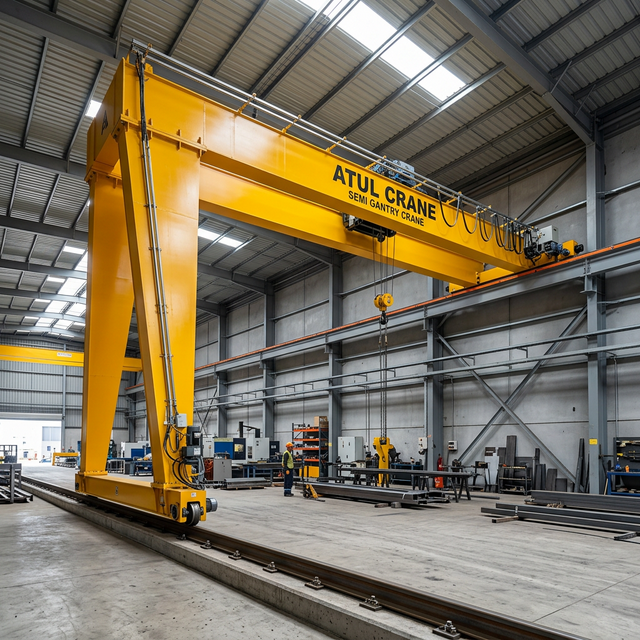

A Semi-gantry is a type of crane that combines the features of a gantry and an overhead bridge crane. This configuration is characterized by having one end of the bridge supported by a gantry leg running on a floor-mounted track, while the other side is supported by an elevated runway rail, similar to an EOT crane.
Semic gantry cranes are ideal for outdoor applications where workspace is tight or in large indoor areas where you only need localized coverage along the wall of a building. They provide an efficient, cost-effective solution for material handling in environments where full gantry systems aren't feasible.
Technical Overview- Semi Gantry Crane
| Load Capacity | Designed with capacities from 0.5 to 50 tons to accommodate varying lifting requirements |
| Span | Our cranes offer spans range from 5 to 30 meters, ensuring optimal reach and efficiency |
| Lifting Height | Standard lift heights between 3 and 25 meters, with customisation available |
| Hoisting Speed | Can be customised as per the requirement |
| Crane Travel Speed | Up to 40m/min for efficient, smooth, and controlled material handling |
| Power Supply | 3-phase AC supply for efficient and smooth heavy-duty performance |
| Structural Material | Durable high-strength steel for consistent performance under rigorous loads |
| Standards Followed | Designed as per IS 3177, IS 807, FEM, and CMAA guidelines |
| Control Options | Pendant controls or wireless remote for flexible operation |
| Safety Features | Overload prevention, fail-safe brakes, and limit switches |
| Duty Cycle | Supports M3 to M8 duty cycles for various operations |
| Operating Temperature | -20°C to 50°C |
| Applications | Industrial and warehouse environments, indoor and outdoor |
| Customization | Full customisation options as per client requirements |
| Specified Capacity | Tested to withstand 125% above the specified capacity |
Technical Features
Of Semi Gantry Crane
Versatile Design: Features one rail-mounted end carriage and a ground-mounted gantry leg
High Load Capacity: Can handle loads ranging from 0.5 to 50 tons
Wide Operational Span: Offers spans of 5 to 30 meters
Customizable Speed Options: Hoisting speeds from 0.5 to 15 m/min
Durable Construction: Made from high-tensile steel with box-type or lattice legs
Advanced Safety Features: Includes overload protection and fail-safe brakes
Control Flexibility: Equipped with pendant controls or wireless remote systems
Environmental Suitability: Can operate in temperatures ranging from -20°C to 50°C
Benefits & Applications
Our Semi Gantry Crane provides the following benefits:
Why Choose Us?
Equipped with a state-of-the-art hoist and crane manufacturing facility, we deliver high-quality material handling equipment built with advanced machinery. Our skilled engineers serve a wide range of industries, ensuring precision handling and on-time delivery every step of the way.
Trusted Expertise
Readily Available Spares
Advanced Technology
Safety And Compliance
Affordable Solutions
24/7 Customer Support
Frequently Asked Questions
At Atul Crane & Components, our Semi Gantry Cranes are designed to operate efficiently in indoor, outdoor, and dual-environment applications.
Yes, we provide comprehensive installation and commissioning services through our expert engineering team to ensure your crane is set up safely and correctly.
Absolutely. Our semi gantry cranes are built with high-tensile steel and heavy-duty components capable of handling loads up to 50 tons with maximum stability.
We specialize in customization. From hoisting speeds and spans to environmental protections and control systems, we tailor every system to your workflow.
Ready To Enhance Your
Material Handling?
Our engineering team is ready to provide a customized solution for your facility.
